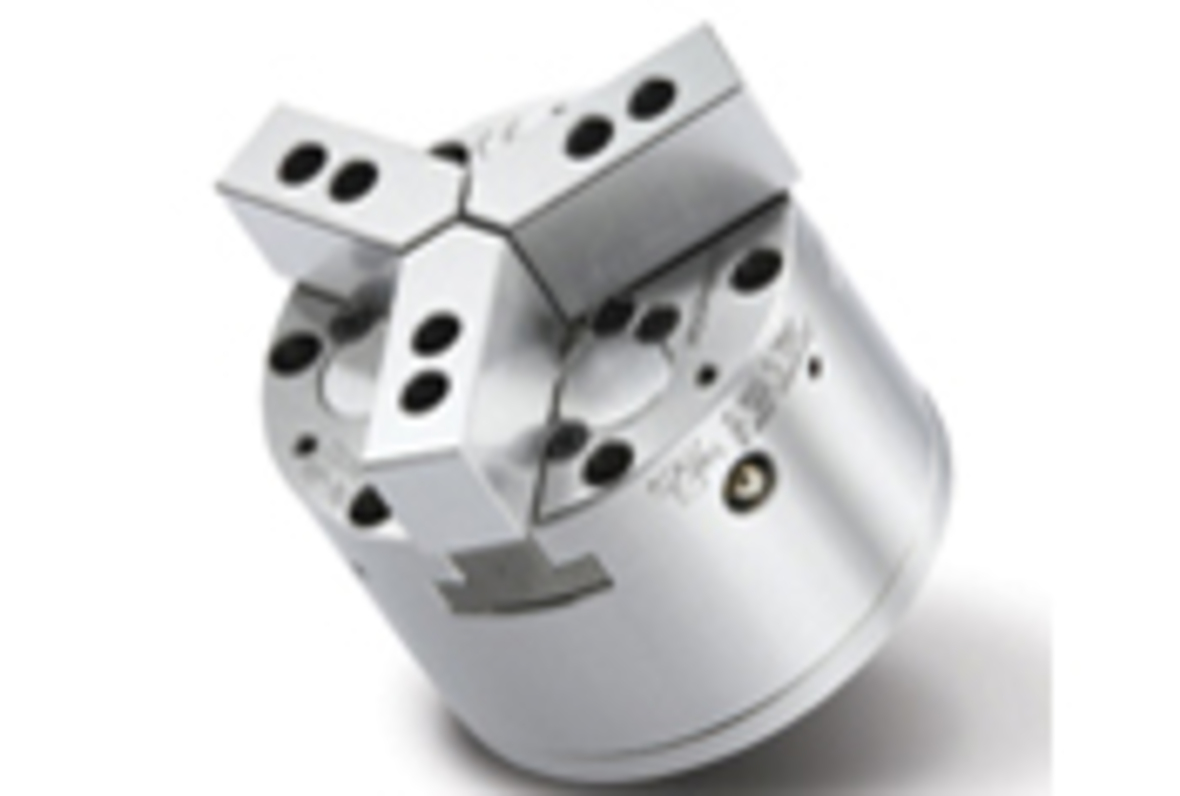

夾持工件的同軸度及重現精度可達成1um。預設治具孔及預留自動潤滑管道：爪殼預設治具孔，有額外固定需要時不須再追加加工；且預留自動潤滑管道，可與自動潤滑裝置連結。前置式汽缸：汽缸與夾盤直結設計，確保作動及夾持的穩定性。生爪精密定位：設有定位銷使生爪在重復拆裝時仍保持良好的定位精度。超高精度夾持提高工作效率：夾持工件的同軸度及重復夾持精度可達成1um，簡化操作，實現高效率的精密加工。主要技術參數：型式/規格ABCDED1d(H7)D2HhWM2TK-0420.7512.712.7101.63082.55182570.33.2166-M5×0.8PTK-0639.7512.712.7152.440124.972634.570.33.22212-M5×0.8PTK-0865.7525.4––203.245167.64505099.57256-M10×1.5P 型式/規格M3T1T2TK-049～Φ3.183-M5×0.8P(PCDΦ88.9)––TK-069～Φ3.183-M6×1P(PCDΦ135.89)3-M6×1P(PCDΦ110)TK-086～Φ6.363-M8×1.25P(PCDΦ182.88)3-M8×1.25P(PCDΦ150) 型式/規格T3M1R1R2R3TK-04––6-M5×0.8P(PCDΦ88.9)30°––––TK-063-M6×1P(PCDΦ135.89)6-M6×1P(PCDΦ135.89)30°30°45°TK-083-M8×1.25P(PCDΦ100)6-M10×1.5P(PCDΦ182.88)30°30°30° 型式/規格爪T.I.R爪行程直徑重復夾持精度空壓夾持力Griooing Force(0.7mpa)最高回轉速凈重TK-040.00130.001310-3.145004.4TK-060.00130.001790-7.845009.8TK-080.00130.0011450-14.3400026.3
